F-Line Hydraulic FittingsDIN 2353 · ISO 8434-1
DIN tube fittings, stainless steel tubing and green tube clamps arranged on a Fluidline blue background
F-Line · HYDRAULIC CONNECTIONS

DIN 2353ISO 8434-1STAINLESS STEELHydraulic Tube Fittings

Single-Ferrule Cutting-Ring
Compression Fittings

Hydraulic cutting-ring tube fittings, including mild steel options, supplied from Midrand, South Africa to customers across Africa.

MIDRAND, SOUTH AFRICA · AFRICAN EXPORT ENQUIRIES
FIND YOUR FITTING

Detailed Product Guides

24°Metric tube connection
LL / L / SVery light, light and heavy series
4–42 mmOverall catalogue scope
50Configuration entries
FIND YOUR CONNECTION

Available DIN 2353 Fitting Configurations

Start with the connection you need. Sizes, materials and permissible ratings are confirmed for the quoted item.

DIN 2353 Welding fittings

Welding Fittings

Specify F-Line weld connectors, nipples, reducers and weld bulkhead connections for hydraulic tube assemblies that require a welded transition. Match the weld end to tube material and wall thickness.

Explore welding fittings →
DIN 2353 Spare components

Spare Components

Select matched F-Line tube nuts, cutting rings and replacement seals for the supplied fitting system. Identify the original assembly and seal dimensions before ordering individual components.

Explore spare components →
UNDERSTAND THE SYSTEM

What Is a DIN 2353 Fitting?

A DIN 2353 fitting is a metric cutting-ring connection used with rigid hydraulic tube. The body, nut and cutting ring work together to grip the prepared tube and seal at the 24° connection. ISO 8434-1 is the equivalent international standard for DIN 2353 24° cone tube connections.

Selection starts with tube outside diameter and series. The final assembly must also match the port, material, seal, tube wall and operating conditions.

Read the size and thread guide →

Find the Tube-End Union Thread

Identification aid only. Match the series, tube size and seating arrangement as well as the thread.

INSIDE THE CONNECTION

How the Components Fit Together

Explore the tube, nut, cutting ring and fitting body in an exploded view and a section through the assembly.

DIN 2353 connection diagram showing the tube, nut, cutting ring and fitting body separately, a completed assembly, and a cutaway with the 24-degree cone seat labelled.
DIN 2353 bite-type connection — component overview.Open full-size diagram ↗Download diagram ↓

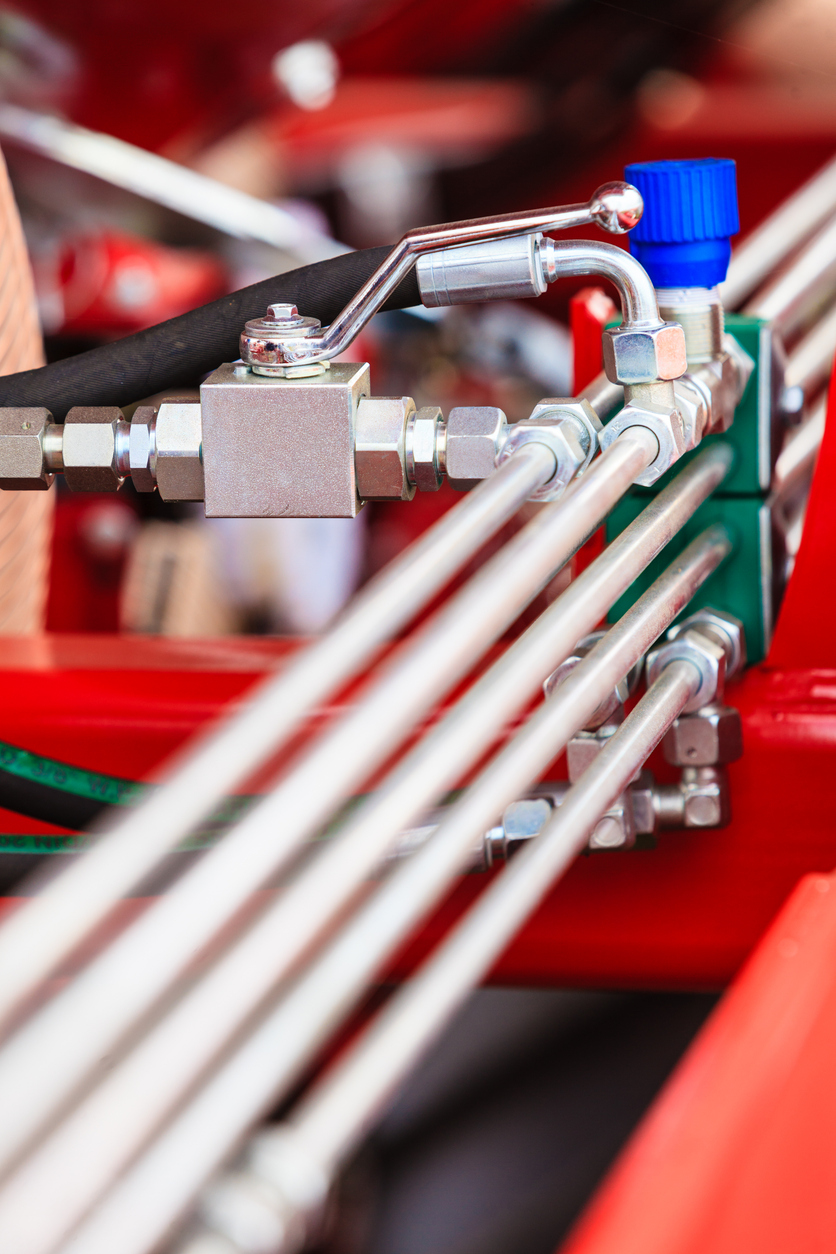

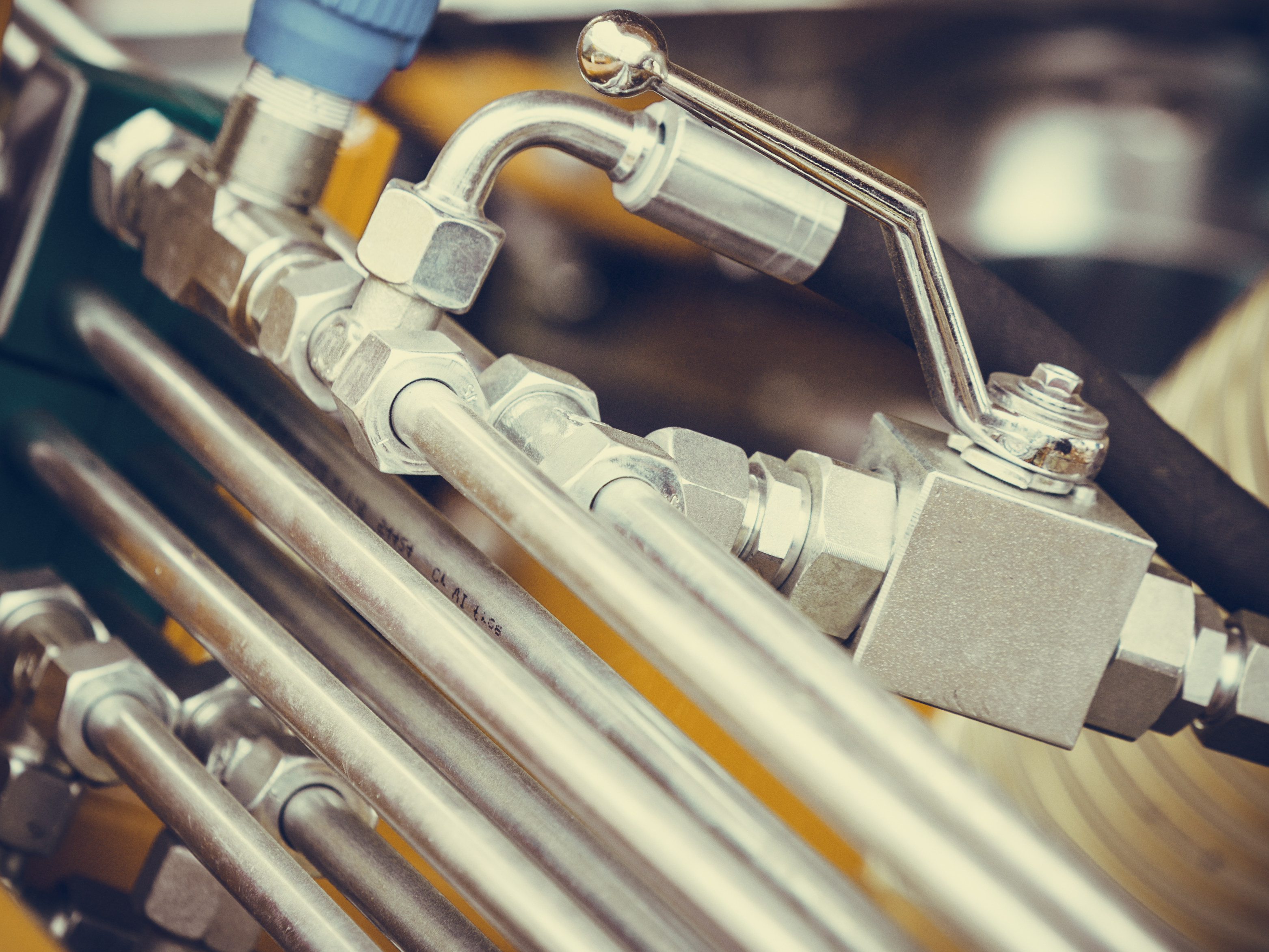

Hydraulic manifold installation with multiple rigid tube runs and control valves
Hydraulic tubing and fittings arranged around a manifold installation.
FROM COMPONENT TO CONNECTION

Make Every Connection Count.

From a replacement fitting to a new hydraulic tube run, start with the right dimensions and service conditions. Fluidline’s Midrand team supports enquiries across South Africa and the wider African market.

Send your tube size, fitting series, connection details and operating conditions so the complete assembly can be assessed for your application.

Discuss your applicationRead the material & pressure guide →

Technical Selection Guides

SELECTION GUIDE

DIN 2353 Pressure Ratings, Materials and Seals

Select the fitting, tube and seals as one assembly. Pressure capability depends on the exact configuration, material, tube dimensions, temperature and installation method.

SELECTION GUIDE

DIN 2353 Installation and Inspection Guide

Successful cutting-ring connections depend on suitable tubing, matched components, careful preparation and the correct assembly procedure for the supplied fitting system.

Questions Answered

What is the international equivalent of DIN 2353?

ISO 8434-1 is the equivalent international standard for DIN 2353 24° cone tube connections. These fittings are commonly specified as DIN 2353 / ISO 8434-1. Include the tube size, series, material and sealing form when identifying the required connection.

What is the difference between L and S series DIN 2353 fittings?

L and S are different dimensional series. The same tube outside diameter can use a different union thread and body geometry. Pressure suitability must be confirmed for the exact fitting, material, tube and temperature.

Do all DIN 2353 fittings have a 630 bar rating?

No. Pressure ratings vary with size, series, material, sealing system and configuration. Select using the permissible rating of the complete supplied assembly at the operating temperature.

Can I get stainless steel DIN 2353 fittings?

Include 316L or 316Ti stainless steel in your F-Line enquiry. Fluidline will confirm the supplied material, size combination and documentation with the quotation.

Can DIN 2353 and twin-ferrule fittings be mixed?

They are different fitting systems. Do not mix bodies, nuts or rings on appearance or thread fit alone. Use an approved transition and matched components.

Where can I request DIN 2353 hydraulic fittings in South Africa?

Contact Fluidline in Midrand on +27 11 312 9339 or ram@fluidline.co.za or brett@fluidline.co.za with the tube size, series, connections, material, quantity and operating conditions.

INDUSTRY APPLICATIONS

Hydraulic Connections Across Industry

Refinery process towers and interconnected pipework.

Refining & Petrochemicals

Hydraulic connections for plant equipment and maintenance. Specify the fluid, pressure, temperature and installation environment.

Illuminated offshore drilling rig at sea at dusk.

Offshore Oil & Gas

Hydraulic tube connections for offshore equipment. Confirm material suitability, corrosion exposure and project documentation requirements.

Power station with cooling towers and illuminated plant equipment at dusk.

Power Generation

Hydraulic connections for power-station equipment and maintenance. Confirm operating duty, tube specification and connection requirements.

Industry photographs are illustrative. Confirm the suitability and operating limits of the complete assembly for the intended service.

MIDRAND STOCK · AFRICAN DELIVERY

DIN 2353 Hydraulic Fittings Delivered Across Southern and Central Africa

Fluidline stocks F-Line DIN 2353 hydraulic tube fittings in Midrand, South Africa, and delivers them to customers in Zambia, the Democratic Republic of Congo, Namibia, Botswana, Zimbabwe and Mozambique, as well as many other destinations across Africa. Common sizes in the L and S series are held on the shelf, so most enquiries are quoted from stock rather than from a factory lead time.

We arrange the delivery. You send the fitting specification and the delivery address, and we quote the fittings together with courier or road freight to your town, mine or workshop.

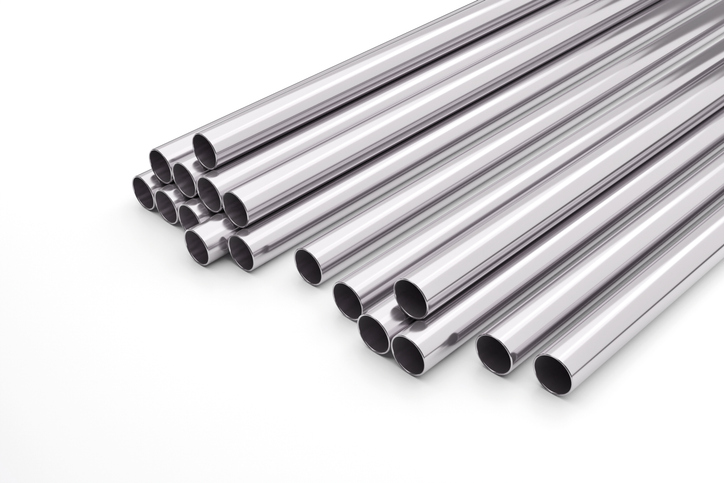

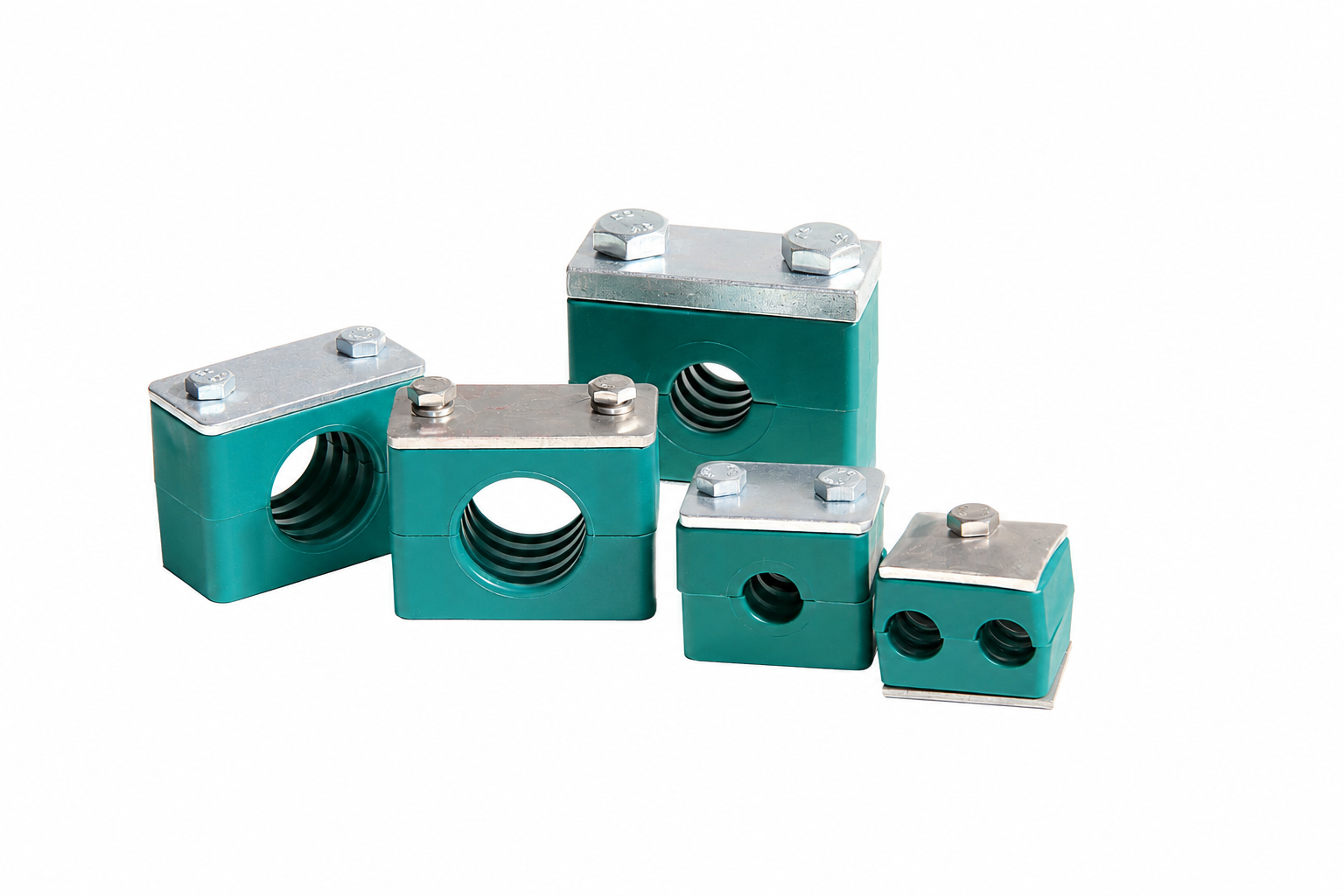

One supplier covers the full tube run: 24° cutting-ring fittings from 4 mm to 42 mm tube outside diameter, seamless hydraulic tubing, tube clamps and tube tools.

Request fittings and delivery →
SPECIFY YOUR CONNECTION

Request the Right Fitting

Send the connection details and operating conditions. Fluidline can confirm the supplied configuration, availability and supporting documentation with your quotation.
